Canted coil springs, sometimes called slant coil or slanted coil springs, are ideal for push-pull and snap-on connectors (Figure 1), or pressure relief valves (Figure 2). They allow engineers to customize connector space, target connecting and disconnecting force, while maximizing the spring's high electric current capacities. In a latching application, the connector's insertion and removal force can differ by 10 folds. The simplicity of a canted-coil-spring-enabled application also translates into minimal assembly time, fewer material consumptions, less complicated systems, and lower overall costs.

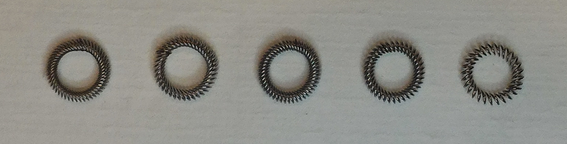

Figure 3: Swap canted coil springs to achieve different connecting force or electric current capacities
The canted coil springs in the image above are the same in size - all can fit into the same spring groove. However, the differences in spring configurations result in significantly different connecting forces or electric current capacities. Each iConnFlex™ canted coil spring essentially creates a functionally different connector without changing the connector's dimensions or appearance.
Figure 2: Axial Spring Application
An axial iConnFlex™ canted coil spring can compensate for the surface unevenness and maintain a constant surface contact in a knife connector. Axial springs can also be used in pressure relief valves.
Canted coil spring product lines
Benefits of canted coil springs:
Figure 1: Radial Spring Application
A connector with a radial iConnFlex™ canted coil spring provides a specific sliding force and electric current capacity. A circular spring can also fit into a rectangular groove.
Reg. #: 11Q22180 Reg. #: 37E22180
Canted coil spring
manufacturer
Verify iConn's ISO Certificates on the secured GLC website with the registration numbers:
ISO-9001 Registration Number: 11Q22180
ISO-14001 Registration Number: 37E22180

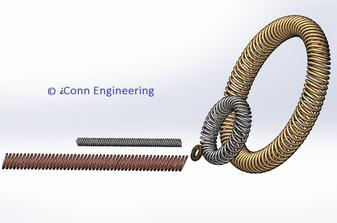

iConnFlex™ Canted coil springs are sold in welded spring rings or in cut length. The wire diameters range from 0.1 mm (0.004 inches) to 1.80 mm (0.071 inches). Material choices vary from stainless steel, copper alloys, nickel alloys, to titanium. Surface plating is optional.
Springs that fit ALL of the following criteria are standard:
1) Wire diameter between 0.25 mm/0.010 inches and 1.50 mm/0.059 inch
2) Coil width larger than 1.8 mm/0.071 inches and unwelded length below 100 mm/3.9 inches
3) Stainless steel or copper alloy wires
4) Light or medium in spring force
Non-standard springs are also available at higher prices. Please contact us directly for a price quote at quote@iconneng.com or sales@iconneng.com.
